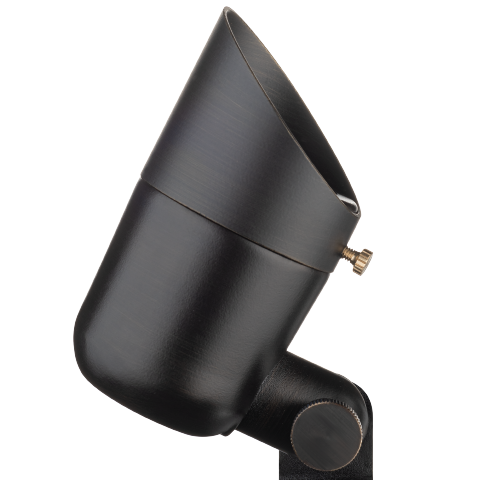

BL20 “Vulcan” Compact Up-Directional Light

ClaroLux’s BL20 “Vulcan” compact bullet light is our most economical up light, featuring a low-profile base for wider illumination of facades, trees, and architectural features. Ideal for up-lighting and wash-lighting (with a 120° LED LAMP). Available in brass in a variety of finishes.

Available with direct replacement LED Lamps in a wide variety of beam angle, color temperature, and lumen output options.

Multiple US Patents

Buy 50+ Save 3%
Buy 100+ Save 5%
Buy 250+ Save 7%
Buy 500+ Save 10%
(*discount will be applied in cart)

Login to view price | Not a dealer? Sign up today

SKU: BL20 Category:

Additional information

Weight 3.2 lbs
Dimensions 10 × 6 × 4.5 in

Applications

  • Up-lighting landscape, architecture and accents
  • Illuminating midsize trees

Features

  • Material Housing: Forged-Construction C360 Brass Components
  • Glass: Beveled Glass Lens for water and debris runoff
  • Top: Easy to Remove Screw on Top
  • Socket/Connection: Pre-Greased Copper Beryllium Socket
  • Screws/Components: Stainless Steel Screws & Components
  • Mount: Slotted ABS Plastic Ground Stake
  • Serviceability: 100% Field Serviceable Design
  • Warranty: Structural Lifetime Warranty
  • Seals: Silicone O-ring Seals to prevent water intrusion
  • Knuckle: Adjustable Knuckle with Locking Teeth
  • Strain Relief: Silicone plug for strain relief and insect intrusion prevention
  • Sure Seal: ClaroLux Sure Seal Lens w/ SS retention clip

Specifications

  • Bulb Type: MR16
  • Maximum Wattage: 20 Watts
  • Wire Lead: 3FT 18AWG SPT-2
  • Structural Lifetime Warranty

> Download the BL20 Vulcan Spec Sheet | PDF

Installation Instructions

For use with Low Voltage Landscape Lighting Power units. FOR OUTDOOR USE ONLY.

  • Amps not to exceed: 25 AMPS
  • Volts not to exceed: 12 Volts
  • Max lamp wattage UL 20W & cUL 20W
  • If using halogen, do not exceed 12V at the luminaire
  • If using LED, optimal operating range is 10V-14V

WARNING: Luminaire must be installed in accordance with National Electric Code (NEC) and Local Codes. Failure to do so will void all warranties and may result in serious injury and/or damage to the luminaire.

> Download the BL20 Vulcan Install Instructions | PDF
