BL21 "Tivoli" Compact Up-Directional Light

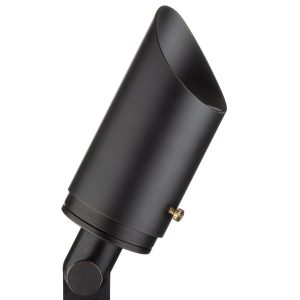

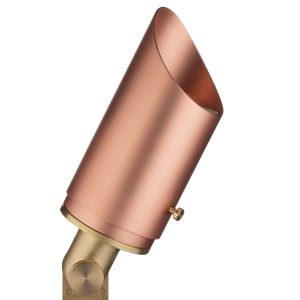

ClaroLux’s BL21 “Tivoli” compact bullet light is the little brother to ClaroLux’s BL23 “Ravenna”, with a low-profile base and shorter visor. The visor is adjustable like the BL23 “Ravenna”, but is shorter reducing its ability to eliminate glare. Ideal for up-lighting and wash-lighting (with a 120° LED LAMP), featuring a spring-loaded socket that ensures the lamp rests flush against the glass for accurate beam angle rendition. Available in brass and copper in a variety of finishes.

Available with direct replacement LED Lamps in a wide variety of beam angle, color temperature, and lumen output options.

This luminaire is designed as an up-light only.

Buy 50+ Save 3%
Buy 100+ Save 5%
Buy 250+ Save 7%
Buy 500+ Save 10%

Bulbs

Visors:

Product total

Options total

Grand total

Weight 3.2 lbs
Dimensions 10 × 6 × 4.5 in

Applications

  • Up-lighting landscape, architecture and accents
  • Illuminating Midsize trees

Features

  • Material Housing: Precision CNC Machined C360 Brass Components
  • Glass: Beveled Glass Lens for water and debris runoff
  • Top: Easy to Remove Screw on Top
  • Socket/Connection: Pre-Greased Copper Beryllium Socket
  • Screws/Components: Stainless Steel Screws & Components
  • Mount: Slotted ABS Plastic Ground Stake
  • Serviceability: 100% Field Serviceable Design
  • Warranty: Structural Lifetime Warranty
  • Origin: Made in USA
  • Seals: Silicone O-ring Seals to prevent water intrusion
  • Knuckle: Adjustable Knuckle with Locking Teeth
  • Visor: Telescoping Visor to Reduce Glare (1″ of adjustability)
  • Strain Relief: Silicone plug for strain relief and insect intrusion prevention
Future Features:
  • MLS: Multi-Level Adjustable Socket
  • Sure Seal: ClaroLux Sure Seal Lens w/ SS retention clip

Specifications

  • Bulb Type: MR16
  • Maximum Wattage: 20 Watts
  • Wire Lead: 25FT 18AWG SPT-2
  • Made in USA
  • Structural Lifetime Warranty

> Download the BL21 Tivoli Spec Sheet | PDF
> Download the BL21 Tivoli MR16 Bulb Photometric Sheet | PDF

Installation Instructions

For use with Low Voltage Landscape Lighting Power units. FOR OUTDOOR USE ONLY.

  • Amps not to exceed: 25 AMPS
  • Volts not to exceed: 12 Volts
  • Max lamp wattage UL 20W & cUL 20W
  • If using halogen, do not exceed 12V at the luminaire
  • If using LED, optimal operating range is 10V-14V

WARNING: Luminaire must be installed in accordance with National Electric Code (NEC) and Local Codes. Failure to do so will void all warranties and may result in serious injury and/or damage to the luminaire.

> Download the BL21 Tivoli Install Instructions | PDF
