BL22 “Siena” Compact Up-Directional Light

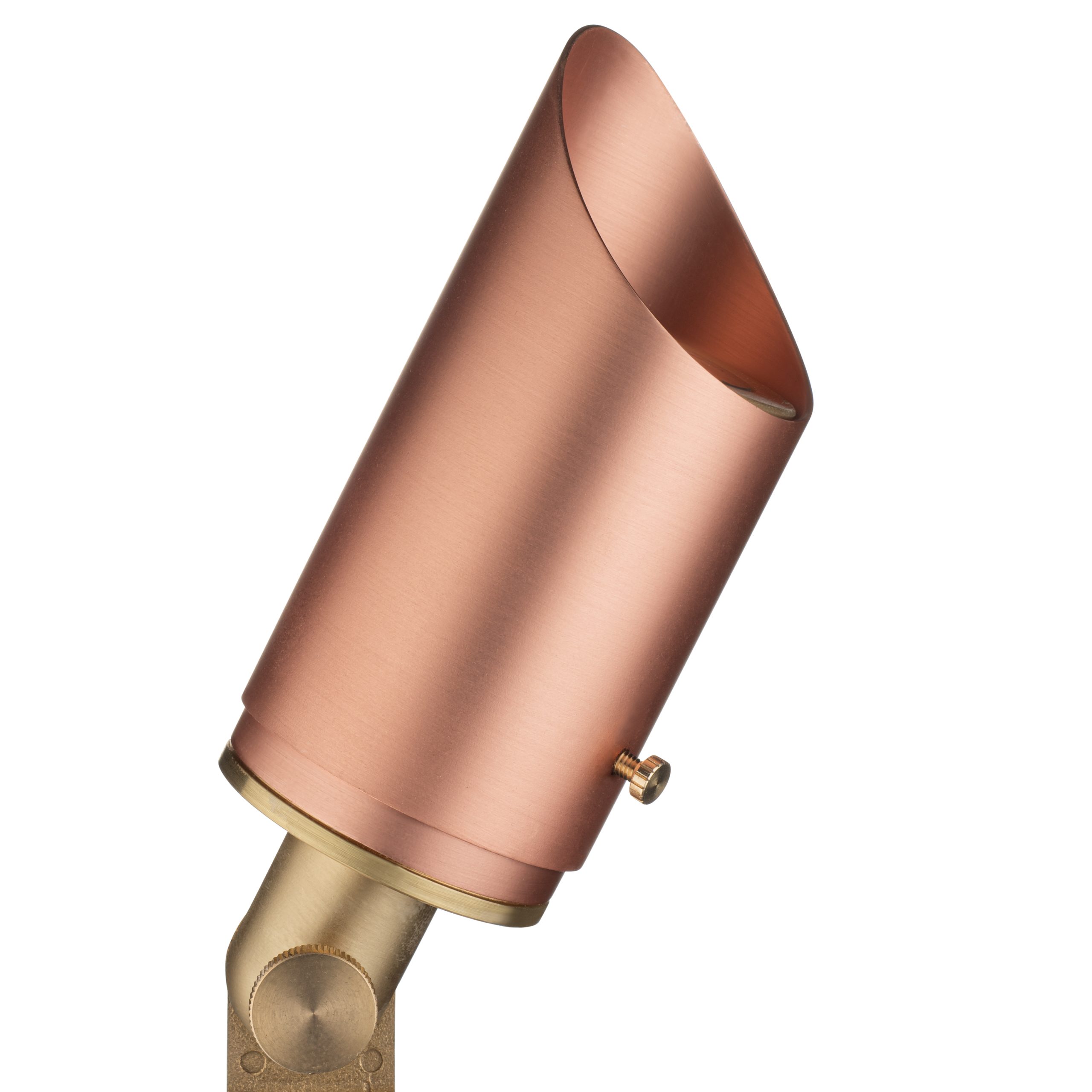

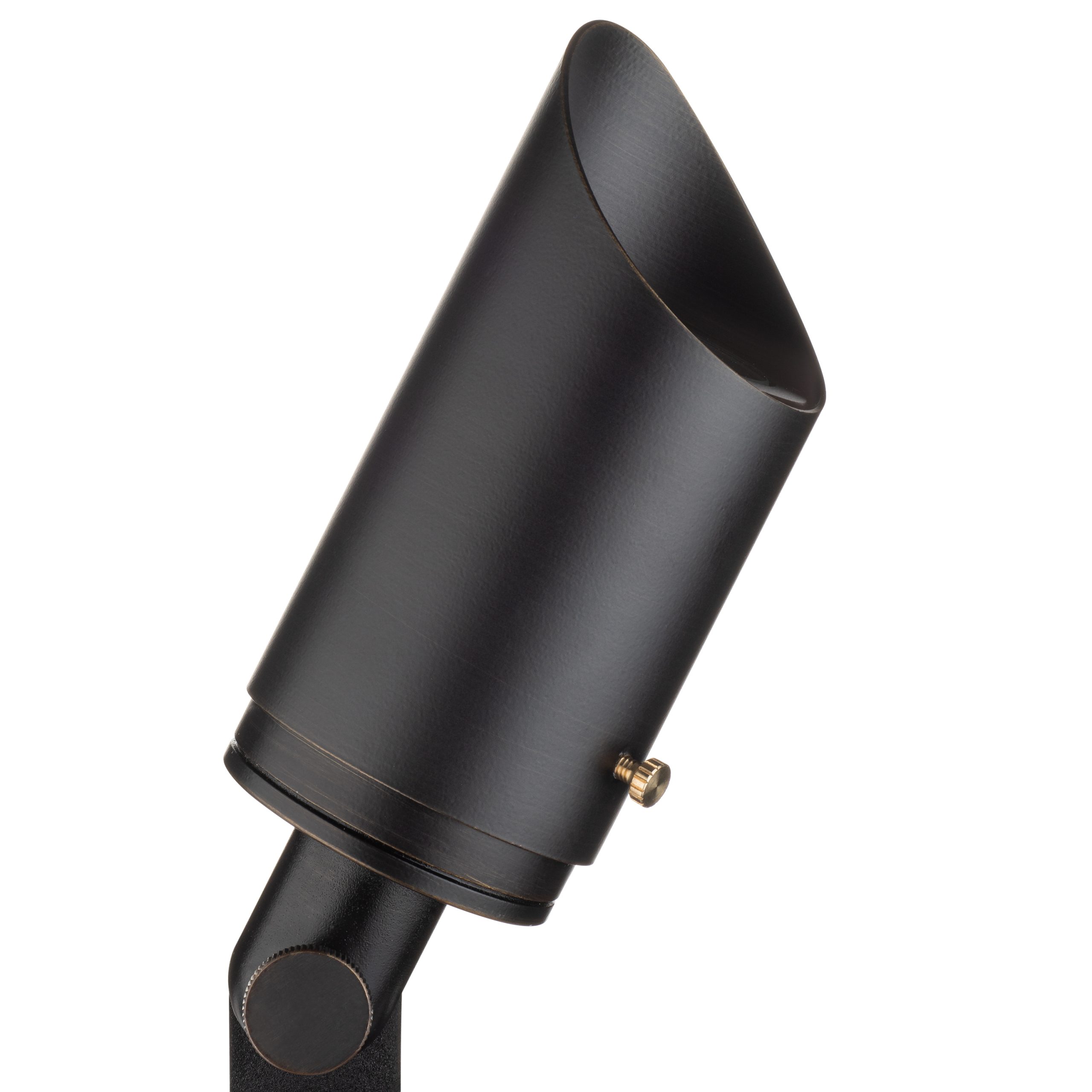

ClaroLux’s BL22 “Siena” compact bullet light is the ultimate combination of ClaroLux’s BL21 “Tivoli” and ClaroLux’s BL23 “Ravenna”, featuring the body of the BL21 with the long visor of the BL23. The Siena is designed with a low-profile base and long, adjustable visor that helps reduce glare. Ideal for up-lighting and wash-lighting (with a 120° LED LAMP), featuring a spring-loaded socket that ensures the lamp rests flush against the glass for accurate beam angle rendition. Available in brass and copper in a variety of finishes.

Available with direct replacement LED Lamps in a wide variety of beam angle, color temperature, and lumen output options.

Multiple US Patents

Buy 50+ Save 3%
Buy 100+ Save 5%
Buy 250+ Save 7%
Buy 500+ Save 10%
(*discount will be applied in cart)

Login to view price | Not a dealer? Sign up today

SKU: BL22 Category:

Additional information

Weight 3.2 lbs
Dimensions 10 × 6 × 4.5 in

Applications

  • Up-lighting landscape, architecture and accents
  • Illuminating Midsize trees

Features

  • Material Housing: Precision CNC Machined C360 Brass Components
  • Glass: Beveled Glass Lens for water and debris runoff
  • Top: Easy to Remove Screw on Top
  • Socket/Connection: Pre-Greased Copper Beryllium Socket
  • Screws/Components: Stainless Steel Screws & Components
  • Mount: Slotted ABS Plastic Ground Stake
  • Serviceability: 100% Field Serviceable Design
  • Warranty: Structural Lifetime Warranty
  • Seals: Silicone O-ring Seals to prevent water intrusion
  • Knuckle: Adjustable Knuckle with Locking Teeth
  • Visor: Telescoping Visor to Reduce Glare (1″ of adjustability)
  • Strain Relief: Silicone plug for strain relief and insect intrusion prevention
Future Features:
  • MLS: Multi-Level Adjustable Socket
  • Sure Seal: ClaroLux Sure Seal Lens w/ SS retention clip

Specifications

  • Bulb Type: MR16
  • Maximum Wattage: 20 Watts
  • Wire Lead: 10FT 18AWG SPT-2
  • Structural Lifetime Warranty

> Download the BL22 Siena Spec Sheet | PDF

Installation Instructions

For use with Low Voltage Landscape Lighting Power units. FOR OUTDOOR USE ONLY.

  • Amps not to exceed: 25 AMPS
  • Volts not to exceed: 12 Volts
  • Max lamp wattage UL 20W & cUL 20W
  • If using halogen, do not exceed 12V at the luminaire
  • If using LED, optimal operating range is 10V-14V

WARNING: Luminaire must be installed in accordance with National Electric Code (NEC) and Local Codes. Failure to do so will void all warranties and may result in serious injury and/or damage to the luminaire.

> Download the BL22 Siena Install Instructions | PDF
